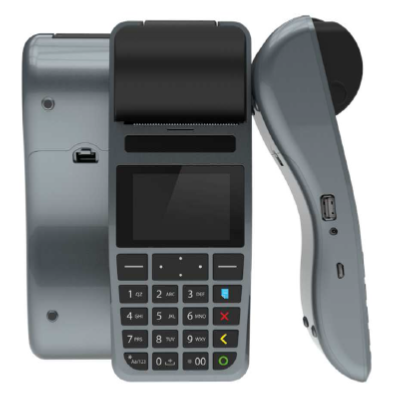

How the Mobi II works and how to use it.

The Mobi II is a GSM device that accesses the Kazang platform via the cellular data network. It requires a Simcard with valid data or airtime to function.

When you switch the Mobi II on, it will automatically take you to the Kazang login screen. The Kazang application is preloaded on the device. The supplied username and password must be used to log in to the Kazang vending platform. Access to the different products is managed by permissions assigned to the usernames on the Kazang platform, so the user will only have access to relevant products.

Once logged in, a product list will be downloaded. This product list will be displayed as selectable menu items. Any of these items can be vented, depending on the funds available in the vendors preloaded Kazang wallet.

How to load the wallet

The vendor can deposit funds at any of the major banks (directly or via EFT) into the Kazang account. Each vendor is provided with a unique account number that must be used as a reference when the deposit is made. The vendors’ wallet will automatically be topped up as soon as the funds reflect in the Kazang account.

Banking details and the account number can be printed from the Mobi II device after the vendor has logged in.  From the main menu, select “Reports->Banking->Query Banking Details”. A list of banks and account numbers will print with vendor account number at the top.

General Features

1. Saving the username and changing the password

                Enter the username in the applicable box of the login screen. Enter the password in the applicable box. Use the center button to scroll to the selection boxes below. Make sure the  “Save username” option is highlighted and push the left section of the center button to tick the “Save username” block. When finished press the “Go” button (Green circle)

                If you want to change the password, do the same as above, but tick the “Change password”          block. After logging in, you will be prompted to enter the old and new passwords.

1. How to update the Kazang Application

Upgrades are performed by going to the “Options->Update” menu option and selecting the “Update version” on the MP2 Kazang login screen.

Whenever a new version is available, the user will be prompted to perform an update when they switch the Mobi on and logs in.

1. Normal voucher reprint

After the sale of an airtime voucher, the voucher will stay on the screen of the Mobi II. There are 2 options at this stage: Exit and Print.

The exit will take you back to the menu screen and Print will allow 1 reprint of the voucher. When a reprint is performed, the voucher will indicate that it is a reprint and the Mobi II will revert to the menu screen.

1. Access to last 5 transactions for reprint

                In the main menu screen, there is an item called “Reports”.  Under “Reports” there is a   “Client” option. When this option is selected, select “Transaction History”.

                A list of the last 5 transactions will now appear. Select the transaction you are looking for and the voucher will be displayed on the screen. You now have the option to reprint the voucher.

1. Cash up report and Cash up reset

                From the main menu, select “Reports->Cashup->Cashup Report”. The Mobi II will print a list of all transactions that have been done since the last time the Cash up was reset. It will also show the balance of the wallet and the value of stock in the COD (Content on Device) bins.             To reset the Cashup totals, select “Reports->Cashup->Cashup Reset”. The Mobi will set all counters to zero and print the date and time the totals were reset.

Hotkeys

                Hotkeys are automatically configured on the Mobi II based on the “Top Sellers” list that can be accessed from the main menu screen. Hotkeys are used by pushing the relevant number on the number pad of the Mobi II when the main menu screen is on the display.

                Once the hotkey is pressed, the vendor must confirm the sale and the voucher will print.

Content on Device

1. How to check which content types have COD vouchers

SIM

1. Using SIM to Rica

                From the main menu, scroll down and select “SIM”. Select the “Rica” option. Depending on whether you are using a Vodacom or MTN Simcard, you will be prompted to enter the customers’ information. To use the Rica feature, the vendor and the sim in the Mobi II must be created as Rica agents.

1. How to check the available balance on the active sim

                From the main menu, scroll down and select “SIM”. Select the “Balance” option. The airtime and data balance will now be displayed on the screen. Press OK to exit.

Kazang Application Version 2.60

(Upgrades are performed by going to the “Options->Update” menu option and selecting the “Update version” on the MP2 Kazang login screen.)

1. Larger Font for the menu

   1. Makes it easier to read

2. Barcodes

   1. Barcodes can now be printed on airtime vouchers so that they can be scanned at a till point.
   2. This is set up on Content Ready
      1. Content Ready – Barcode Printing
      2. Select by Device or Group

3. Offline mode

   1. Currently, the MP2 needs to have GPRS access in order to perform a login to CR and no transactions can be done if the login is not possible for any reason.
   2. Offline Mode has been implemented whereby devices that have Content On Device activated and have stock of vouchers in the content bins on the device, will be able to vend this stock even if the device cannot log in to CR.
   3. This can be enabled by “ticking” the Offline Mode tickbox in the Login screen of the Kazang App.

4. New products supported

   1. This release also includes support for Mukuru Money Transfer and DSTV payments which will be released soon.
